Frame Mounted Control Panel Housing the Following:
- QTY (4) HEAT/COOL barrel zones, QTY (4) HEAT/ONLY zones, including mercury relays, circuit breaker protection and associated wiring and thermocouples, and New AMS Auto-tune Temperature Controllers featuring fuzzy logic PID control
- All Wiring is New and features mostly MTW wiring
- Motor STOP/START station, with Red Lion Screw RPM and Motor Amp Displays, and ten turn potentiometers
- 40 HP WEG Extreme Duty AC Motor
- 50 HP Allen Bradley PowerFlex 70 AC Drive
- 1000 VA Control Transformer
- Barrel heaters wired for 480 VAC
- 4 Heat Only Zone Receptacles
- New Gefran Digital Melt Pressure Display/Melt Temperature Display
- New Gefran 10,000 PSI Transducer with Melt Probe
- 90 Amp 600 VAC Disconnect
- 9KVA 3 phase transformer for Die Power and convenience outlets
- Additional (1) 110 VAC electrical outlet in main extruder electrical panel with circuit breaker protection
Mechanical Specifications and Hardware include the Following:
- 24 to 1 Bi-metallic Barrel Honed in good condition
- 4-Bolt Swing Gate
- Screw Included
- Hopper with Approximately 150 LBS Capacity
- Fully inspected Double Reduction Gear Box with New Seals and High-Speed Bearings Approx.15.23 to 1 Ratio
- Machine to be geared 0-87 Screw RPM.
- 10,000 PSI Rupture Disc
- Frame Mounted NEMA 12 Control Panel
- New Barrel Insulation and Barrel Cover

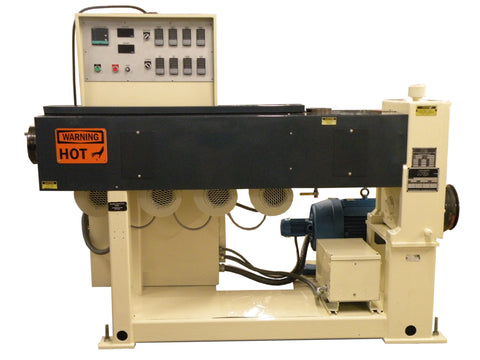

Example of Similar Rebuilt Machine
