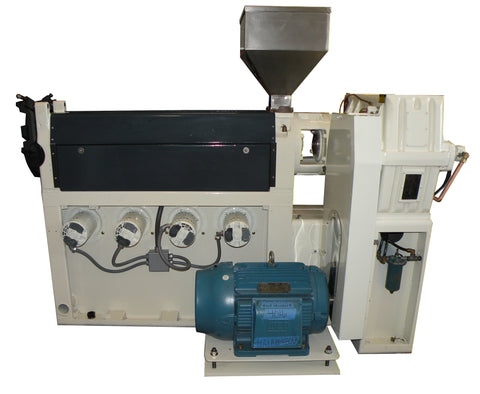

SN E2908
Frame Mounted Control Panel Housing the Following:
- QTY (4) HEAT/COOLbarrel zones, QTY (3) HEAT/ONLY die zones, including mecury relays, circuit breaker and associated wiring and thermocouples, Barber Colman Digital Temperature Controllers
- Motor STOP/START station, with Screw RPM and Motor Amp Displays, and ten turn potentiometer.
- New 40 HP AC Motor
- 40 PH AC Inverter
- 1000 VA Control Transformer for 115 VAC controls
- Barrel heaters wired for 240 VAC
- Die Heater Receptacles
- Melt Pressure Display with 0-10,000 PSI Transducer
- 125 Amp 480 VAC Disconnect
- 4 Barrel Zone blowers for barrel cooling
Mechanical Specifications and Hardware include the Following:
- 666 lined Bi-metallic Barrel
- Clam Ring Front End
- Barrier Maddoch PP Chrome plated screw as well as 2 spares
- SS Hoper Approximately 150 LBS Capacity
- Double Reduction Gear Box Approx. 17 to 1 Ratio
- Machine to be geared 0-120 Screw RPM
- 10,000 PSI Rupture Disk
- Frame Mounted NEMA 12 Inverted “L” Control Panel
- Barrel Insulation and Barrel Cover
- Cast Aluminum Finned Heaters
